paint booth ceiling filter HY-CF-560G
+
  • paint booth ceiling filter HY-CF-560G
paint booth ceiling filter HY-CF-560G

Model: HY-CF-560G G5; DIN53438-F1, UL900-Class2 norma length: 14m/21m normal width: 1.6m/2m

Library Download

| Description

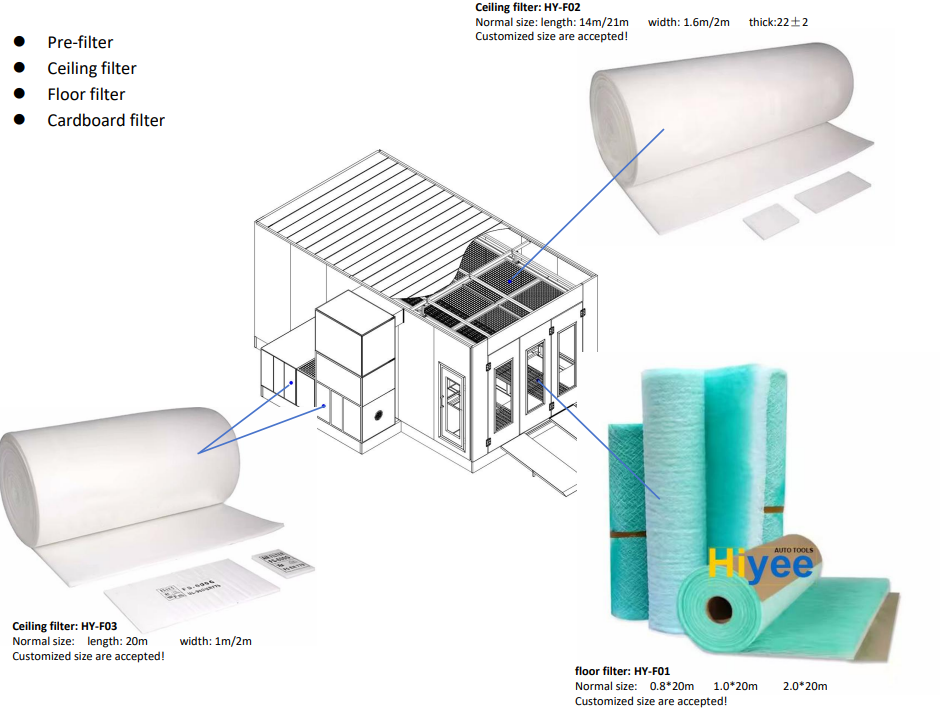

Application:
1. Filtering micro particles ≥1um in spray booth air inflow system.
2. Dust removal in Painting equipment, painting system and painting workshop.
3. Secondary filtering in high-quality painting system and air intake system of baking equipment.
4. Medium filter media for producing air filter



Feature and advantage:
1. High dust holding capacity.
2. With better resistance to corrosion of general solvent, weak acid and weak alkaline.
3. All outlet side pasted with a layer mesh or cloth to reinforce, ensure the strength and effect of air uniformity.
4. Glue fully penetrating media, every fibre is treated with sticky glue, improve the longer adhesive capacity of collected particles, in order to meet the coating technique in the strict quality requirments.
5. Low resistance.





Technical Parameters:
ModeHY-CF-560G
Media Typesynthetic fiber with gradual density, full imregnated with adhesive treatment
air velocity at test0.27M/S
normal thickness22±2
dust holding at final test427g/㎡
filtration gradeF5
avg.arrestance(DIN EN779)≥98%
rated air flow900m3/h
initial pressure30pa
final presure450pa
flammabilityDIN53438-F1 ;UL900-Class2
temp. resistance≤100℃
Humidity Resistance (Relative Humidity): ≤100%RH
Normal size (W x L )length: 14m/21m
width: 1.6m/2m











































| FAQ

Q

How do you make our business long-term and good relationship?


A

We keep good quality and competitive price to ensure our customers benefit ; 2. We respect every customer as our friend and we sincerely do business and make friends with them,

Q

What is your sample policy?


A

for the consumable products, We can supply samples if it has stock, but the customers have to pay the sample cost and the courier cost.

Q

How about your delivery time?


A

Generally,15~40days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q

What is your terms of packing?


A

Generally, we pack our goods in neutral cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
